Fetching Ticket Context for PRs¶

Supported Git Platforms: GitHub, GitLab, Bitbucket

Overview¶

Qodo Merge streamlines code review workflows by seamlessly connecting with multiple ticket management systems. This integration enriches the review process by automatically surfacing relevant ticket information and context alongside code changes.

Ticket systems supported:

GitHub
Jira (💎)

Ticket data fetched:

Ticket Title
Ticket Description
Custom Fields (Acceptance criteria)
Subtasks (linked tasks)
Labels
Attached Images/Screenshots

Affected Tools¶

Ticket Recognition Requirements:

The PR description should contain a link to the ticket or if the branch name starts with the ticket id / number.
For Jira tickets, you should follow the instructions in Jira Integration in order to authenticate with Jira.

Describe tool¶

Qodo Merge will recognize the ticket and use the ticket content (title, description, labels) to provide additional context for the code changes. By understanding the reasoning and intent behind modifications, the LLM can offer more insightful and relevant code analysis.

Review tool¶

Similarly to the describe tool, the review tool will use the ticket content to provide additional context for the code changes.

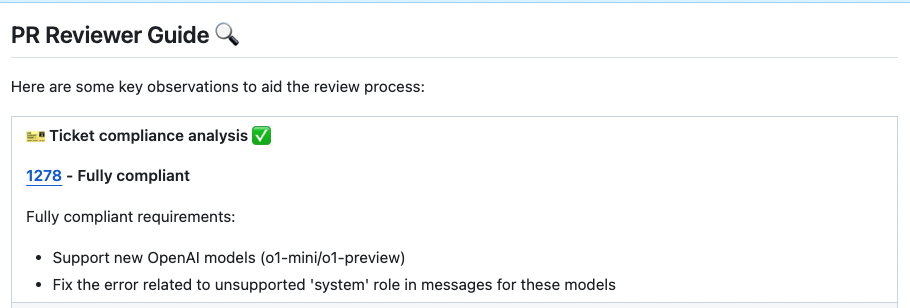

In addition, this feature will evaluate how well a Pull Request (PR) adheres to its original purpose/intent as defined by the associated ticket or issue mentioned in the PR description. Each ticket will be assigned a label (Compliance/Alignment level), Indicates the degree to which the PR fulfills its original purpose, Options: Fully compliant, Partially compliant or Not compliant.

By default, the tool will automatically validate if the PR complies with the referenced ticket. If you want to disable this feedback, add the following line to your configuration file:

[pr_reviewer]
require_ticket_analysis_review=false

GitHub Issues Integration¶

Qodo Merge will automatically recognize GitHub issues mentioned in the PR description and fetch the issue content. Examples of valid GitHub issue references:

https://github.com/<ORG_NAME>/<REPO_NAME>/issues/<ISSUE_NUMBER>
#<ISSUE_NUMBER>
<ORG_NAME>/<REPO_NAME>#<ISSUE_NUMBER>

Since Qodo Merge is integrated with GitHub, it doesn't require any additional configuration to fetch GitHub issues.

Jira Integration 💎¶

We support both Jira Cloud and Jira Server/Data Center.

Jira Cloud¶

There are two ways to authenticate with Jira Cloud:

1) Jira App Authentication

The recommended way to authenticate with Jira Cloud is to install the Qodo Merge app in your Jira Cloud instance. This will allow Qodo Merge to access Jira data on your behalf.

Installation steps:

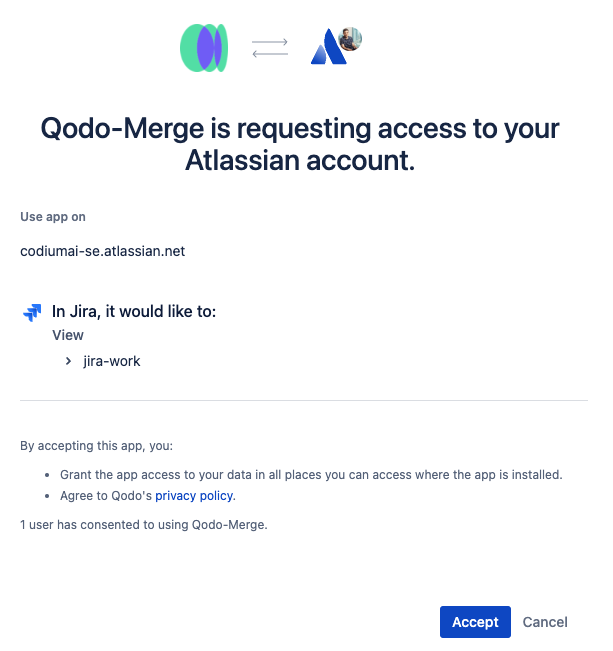

Click here to install the Qodo Merge app in your Jira Cloud instance, click the accept button.

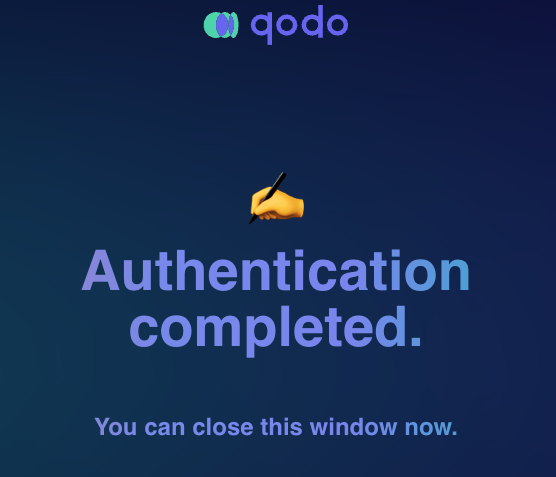

After installing the app, you will be redirected to the Qodo Merge registration page. and you will see a success message.
Now Qodo Merge will be able to fetch Jira ticket context for your PRs.

2) Email/Token Authentication

You can create an API token from your Atlassian account:

Log in to https://id.atlassian.com/manage-profile/security/api-tokens.
Click Create API token.
From the dialog that appears, enter a name for your new token and click Create.
Click Copy to clipboard.

In your configuration file add the following lines:

[jira]
jira_api_token = "YOUR_API_TOKEN"
jira_api_email = "YOUR_EMAIL"

Jira Data Center/Server¶

Using Basic Authentication for Jira Data Center/Server¶

You can use your Jira username and password to authenticate with Jira Data Center/Server.

In your Configuration file/Environment variables/Secrets file, add the following lines:

jira_api_email = "your_username"
jira_api_token = "your_password"

(Note that indeed the 'jira_api_email' field is used for the username, and the 'jira_api_token' field is used for the user password.)

Validating Basic authentication via Python script¶

If you are facing issues retrieving tickets in Qodo Merge with Basic auth, you can validate the flow using a Python script. This following steps will help you check if the basic auth is working correctly, and if you can access the Jira ticket details:

run pip install jira==3.8.0
run the following Python script (after replacing the placeholders with your actual values):

Script to validate basic auth

from jira import JIRA


if __name__ == "__main__":
    try:
        # Jira server URL
        server = "https://..."
        # Basic auth
        username = "..."
        password = "..."
        # Jira ticket code (e.g. "PROJ-123")
        ticket_id = "..."

        print("Initializing JiraServerTicketProvider with JIRA server")
        # Initialize JIRA client
        jira = JIRA(
            server=server,
            basic_auth=(username, password),
            timeout=30
        )
        if jira:
            print(f"JIRA client initialized successfully")
        else:
            print("Error initializing JIRA client")

        # Fetch ticket details
        ticket = jira.issue(ticket_id)
        print(f"Ticket title: {ticket.fields.summary}")

    except Exception as e:
        print(f"Error fetching JIRA ticket details: {e}")

Using a Personal Access Token (PAT) for Jira Data Center/Server¶

Create a Personal Access Token (PAT) in your Jira account
In your Configuration file/Environment variables/Secrets file, add the following lines:

[jira]
jira_base_url = "YOUR_JIRA_BASE_URL" # e.g. https://jira.example.com
jira_api_token = "YOUR_API_TOKEN"

Validating PAT token via Python script¶

If you are facing issues retrieving tickets in Qodo Merge with PAT token, you can validate the flow using a Python script. This following steps will help you check if the token is working correctly, and if you can access the Jira ticket details:

run pip install jira==3.8.0
run the following Python script (after replacing the placeholders with your actual values):

Script to validate PAT token

from jira import JIRA


if __name__ == "__main__":
    try:
        # Jira server URL
        server = "https://..."
        # Jira PAT token
        token_auth = "..."
        # Jira ticket code (e.g. "PROJ-123")
        ticket_id = "..."

        print("Initializing JiraServerTicketProvider with JIRA server")
        # Initialize JIRA client
        jira = JIRA(
            server=server,
            token_auth=token_auth,
            timeout=30
        )
        if jira:
            print(f"JIRA client initialized successfully")
        else:
            print("Error initializing JIRA client")

        # Fetch ticket details
        ticket = jira.issue(ticket_id)
        print(f"Ticket title: {ticket.fields.summary}")

    except Exception as e:
        print(f"Error fetching JIRA ticket details: {e}")

How to link a PR to a Jira ticket¶

To integrate with Jira, you can link your PR to a ticket using either of these methods:

Method 1: Description Reference:

Include a ticket reference in your PR description using either the complete URL format https://.atlassian.net/browse/ISSUE-123 or the shortened ticket ID ISSUE-123.

Method 2: Branch Name Detection:

Name your branch with the ticket ID as a prefix (e.g., ISSUE-123-feature-description or ISSUE-123/feature-description).

Jira Base URL

For shortened ticket IDs or branch detection (method 2 for JIRA cloud), you must configure the Jira base URL in your configuration file under the [jira] section:

[jira]
jira_base_url = "https://<JIRA_ORG>.atlassian.net"
